Weld Purge Monitor Oxy Pro
Weld Purge Monitor Oxy Pro
Weld Purge Monitor Oxy Pro
Weld Purge Monitor Oxy Pro

Weld Purge Monitor Oxy Pro
Weld Purge Monitor Oxy Pro
Weld Purge Monitor Oxy Pro
Weld Purge Monitor Oxy Pro
Weld Purge Monitor Oxy Pro

Weld Purge Monitor Oxy Pro

accuracy up to 5 ppm

  • Simple menu navigation
  • LED display, parameter entry by membrane keyboard
  • Measuring range 5 - 999 ppm O2
  • Suitable for inert gases and gases with hydrogen content of max. 10 %
  • Measuring cell made of zirconium oxide

 DWT PipeTools

Item number: RG350520

Request Online Live Demo

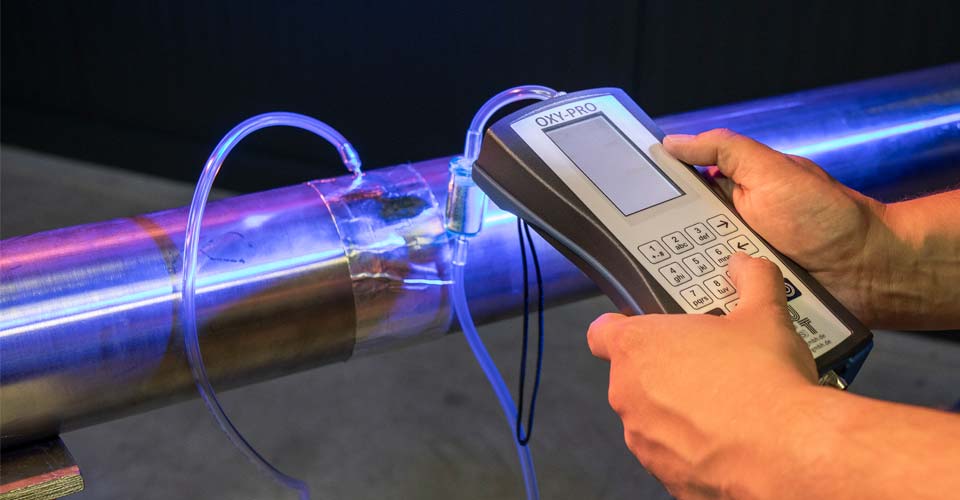

Specially developed for flexible use on construction sites and in the workshop, oxygen analyzer facilitate the welding of stainless steel, since the oxygen concentration can be displayed with an accuracy of up to 0.0005% (5 ppm). Before taking measurements of the welding environment, the oxygen analyzer must be calibrated according to the normal oxygen concentration in the air (20.9%).
The meter maintains calibration even if the device is turned off in the meantime. It is important to ensure that the calibration is repeated at regular intervals. The instrument has built-in temperature compensation to guarantee reliable measurement results at the respective working temperature. Large, unexpected temperature changes can change the measurement results until the temperature of the sensor has stabilized.
  • Suitable for inert gases and gases with a hydrogen content of max. 10 %
  • Temperature controlled zirconium sensor
  • USB interface for storing parameter sets
  • Documentation of residual oxygen value, date, time value and name of the project
  • Illuminated LED display with simple menu navigation
  • Parameter input via keyboard
  • Maintenance-free measuring cell made of zirconium oxide
  • Long service life through intelligent cell management
  • Freely adjustable working range
  • Reminder of the validation process
  • Robust plastic housing with protective rubber frame
Weld Purge Monitor Oxy Pro

Measuring range
5 - 999 ppm O2
Power
110V - 240V
Interfaces
USB, 0-5 VDC, digital
Dimensions (LxWxH)
185 x 93 x 36 mm
Weight
0,60 kg
System language
English and German
Power duration
Up to 8 hours
Sensor type
Zirconium oxide


Flyer Weld Purge Monitor Oxy Pro

DOWNLOAD PDF
Weld Purge Monitor Oxy Pro Advantages
Weld Purge Monitor Oxy Pro

best accuracy

The oxygen concentration can be displayed with an accuracy of up to 0.0005% (5 ppm)

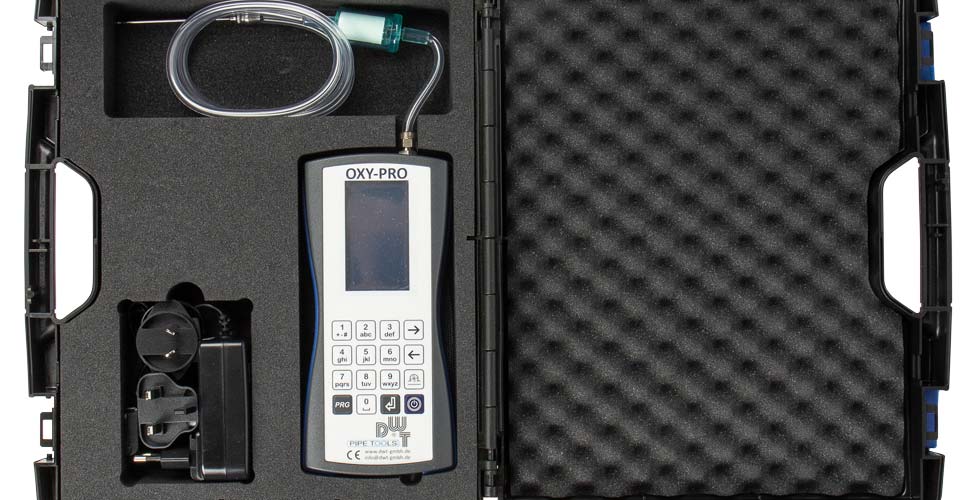

Price includes

Hose set 1m, including filter and stainless steel probe, Test certificate (validation), Transport case, Power supply unit

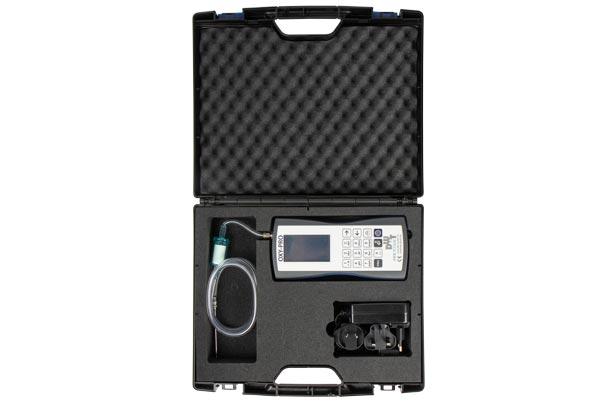

Content Weld Purge Monitor Oxy Pro

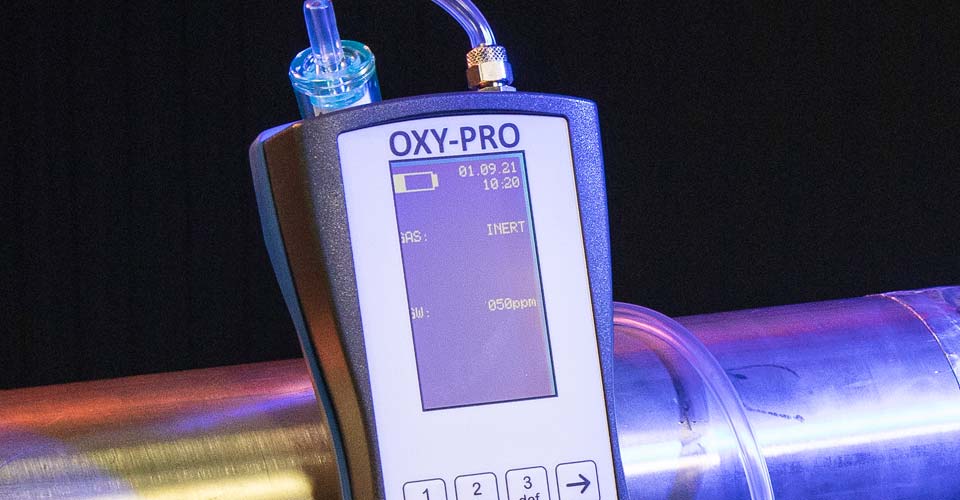

Display Weld Purge Monitor Oxy Pro

Illuminated led display

Simple menu navigation and visual signal during the measurement when the measuring value is not achieved yet
