The classic

  • Folds up for easy storage
  • Capacity: 3,306 lb (1,500 kg)
  • Min. height: 33,64" (850 mm)
  • Max. height: 49,21" (1250 mm)
  • Weight: 26,45 lb (12kg)
  • Quick-action lock washer for quick height positioning
  • Portable and mobile
  • Low weight
  • Hand grip
  • CE certified



 DWT PipeTools

Item number: RG350300

Request Online Live Demo

The classic among the pipe jack stands. Foldable, mobile useage, e.g. for the work on-site and cost-effective in the purchase.  The default foldable pipe jack stand is delivered with a Vee head, but deposits with different materials are also available in order to work with different materials.
Stainless Steel Balls, Steel Rollers and PE-Rollers are available for the userage with the pipe jack stand foldable.
  • Oil and petrochemicals
  • Pipeline construction
  • Food industry
  • Power plant construction

Flyer Pipe Jack Stand foldable

DOWNLOAD PDF
Test Report Pipe Jack Stand foldable

DOWNLOAD PDF



Pipe Jack Stand foldable Advantages
Pipe Jack Stand

Perfect pipe handling

Safe and easy pipe handling for pipes
up to 600 mm OD.

Portable and mobile

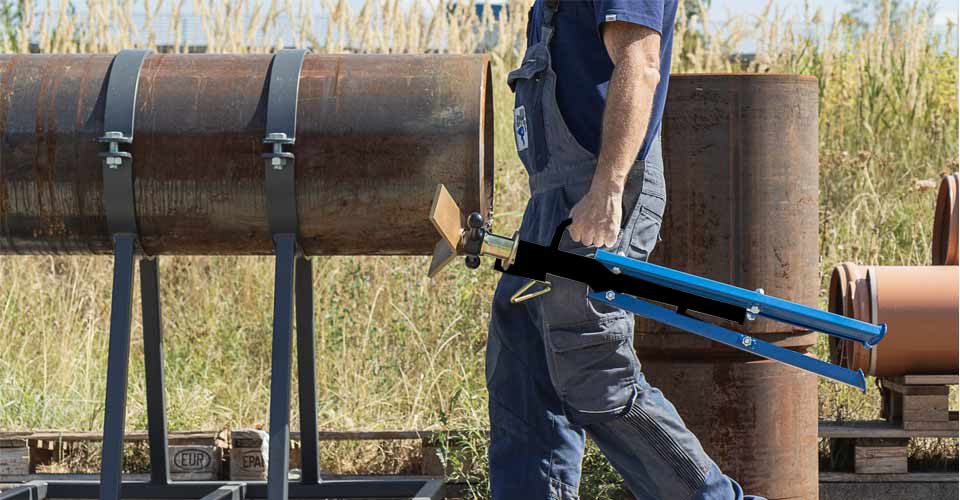

Foldable, mobile useage, e.g. for the
work on-site, easy to transport.
mobile pipe stand
Matching it

Stainless Steel Balls

Stainless Steel Balls

Quick and easy mounting on Vee head.
Capacity: 925 kg

to Stainless Steel Balls

Steel Rollers
Steel Rollers
Quick and easy mounting on Vee head.
Capacity: 450 kg
Pipe diameter OD:
10 - 610 mm

to Steel Rollers
PE Rollers
PE Rollers
Quick and easy mounting on Vee head.
Capacity: 450 kg
Pipe diameter OD:
10 - 610 mm

to PE Rollers
Users also searched
Heavy duty pipe jack stand
Heavy duty pipe jack stand
Capacity: 2.725 kg
Pipe diameter OD: 900 mm


to Heavy duty
Pipe roller stand twin stand
Pipe roller stand twin stand
Capacity: 2.000 kg
Pipe diameter OD: 900 mm


to Twin stand
Pipe jack stand with rollers
Pipe jack stand with rollers
Capacity: 2.000 kg
Pipe diameter OD: 900 mm


to Roller stand
