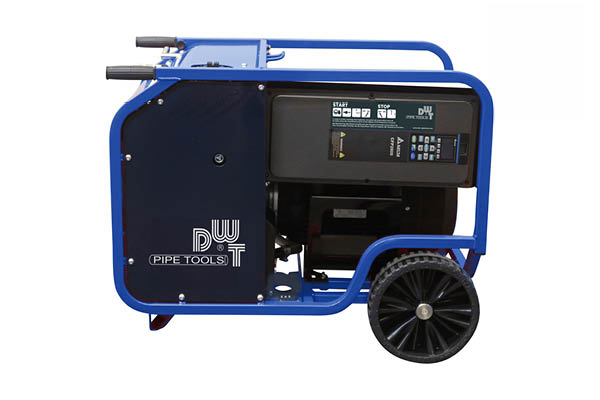

Mobile hydraulic power units

Available with electric or diesel engine

  • Wired remote control
  • On-Off Valve
  • Compact, mobile design
  • Extremely easy to maintain - Direct acces to all parts
  • Oil level indicator, temperature and oil quality indicator
  • Sturdy steel frame construction







Request Online Live Demo

Our electric hydraulic power packs have an infinitely variable delivery rate of 10 to 50 l/min, at 120 bar working pressure. The oil flow can be controlled by means of the selector switch or throttle lever. Therefore, it is possible to connect hand tools with a flow rate of up to 24 l/min as well as high-performance machines with 50 l/min.
Hydraulic power packs can be used with the following tools:
  • Pipe beveling machines
  • Pipe cutting machines
  • Chisel hammers
  • Water pumps
  • Cut-off saws
  • Drilling machines
  • Core drilling machines
  • Power wrenches

 Type
DHP18E
DHP26D
Drive
Electric motor
Diesel engine
Power
11 kW, 3x 400 V
25,2 HP
Starter
-
electric
Pressure
120 bar/ 1.740 psi
160 bar/ 2.465 psi
Flow rate
10 – 46 ltr/min
20 - 60 ltr/min
Mobil
Yes
Yes
Weight
135 kg / 300 lbs (empty)
230 kg / 507 lbs (empty)
Dimensions
805 x 625 x 704 mm
1.040 x 740 x 850 mm


Flyer Hydraulic power units

DOWNLOAD PDF

Matching it
Pipe Cold Cutting Machine
Pipe Cold Cutting Machine Type DLW
Pipe cold cutting and beveling machine for heavy duty pipes and pipelines

to DLW
Pipe Beveling Machine MF4i
Pipe Beveling Machine MF4i
Portable Pipe Beveling Machine with internal clamping for perfect weld edge preparation.
Working Range ID-OD: 2,28-8,62" (58-219,1 mm)

to MF4i
Pipe Chain Clamps double
Pipe Chain Clamps double
Designed for perfect welding alignment of large pipe diameters.
Clamping range:
8 - 60 inch (203 - 1.524 mm)

to Double Chains
