Products
Pipe cutting & beveling
Chain driven pipe cutting and beveling machines
Pipe Cutting Machine Exact Infinity Hydra
Exact Infinity Hydra
Exact Infinity Hydra

Exact Infinity Hydra

Exact Infinity Hydra

Exact Infinity Hydra

Exact Infinity Hydra

Exact Infinity Hydra

Exact Infinity Hydra
Exact Infinity Hydra
Exact Infinity Hydra
Exact Infinity Hydra
Exact Infinity Hydra
Exact Infinity Hydra
Exact Infinity Hydra

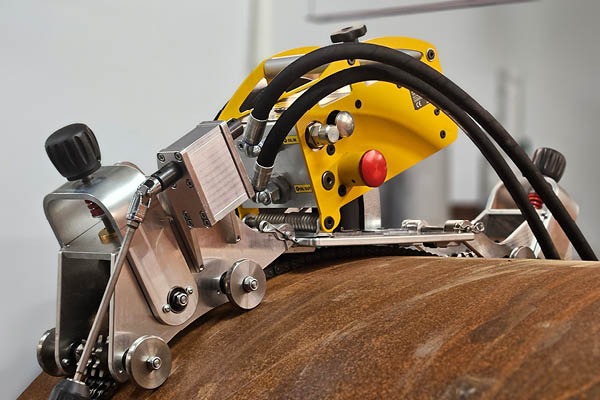

Pipe Cutting Machine Exact Infinity Hydra

The Ultimate Solution for Limitless Pipe Cutting - Even Underwater!

  • Range: 360 - 1.850 mm OD
  • Powerfull hydraulic drive - fully operational underwater
  • Infinity chain system für extra-large pipe diameters
  • Adjustable cutting depth for precise results
  • Cuts all pipe materials - ideal for any job site
  • Optional gear box with connection for cordless screwdriver


 Exact Pipe Cutting

Item number: 1216492

Request Online Live Demo

The PipeCut Infinity Hydra combines the best of both worlds! Equipped with the HYDRA-powered hydraulic motor and the Infinity chain system, this advanced pipe saw expands cutting capabilities for extremely large pipe diameters. Whether you‘re cutting steel, stainless steel, cast iron, aluminum, copper, or plastic, the Infinity Hydra ensures fast, precise, and safe cutting.
With its robust hydraulic motor, fully functional even underwater, the saw handles thick wall pipes effortlessly. The expandable chain system allows cutting pipe diameters from 360 mm to over 1,850 mm, while the adjustable cutting depth ensures optimal precision and flexibility.
Pipe Cutting Machine Exact Infinity Hydra

Range of use
OD 14 - 73" (360 - 1.850 mm) (Infinitely expandable)
Max. wall thicknes
0,8" (20 mm) steel, 1,8" (45 mm) plastic, 0,8" (20 mm) iron
Hydraulic pressure
120 - 150 bar
Oil flow
20 - 25 l/min
Max. Blade Diameter ø
140 mm, 165 mm, 180 mm, 190 mm
Mounting bore
62 mm
  • Pipe Cutting Machine Exact Infinity Hydra with Cermet 165 blade installed
  • 2 pcs. Shoulder Bags
  • 2 connecting hoses (1meter)
  • Operating instructions
  • Clamping device with crank
  • Chain segments for 1.850 mm OD
    2 m, 2 pcs
    1 m, 1 pc
    0,5 m, 1 pc
    0,2 m, 2 pcs
    0,1 m, 1 pc
  • Allen keys, 5mm and 2mm, attached to saw

Flyer Pipe Cutting Machine Exact Infinity Hydra

DOWNLOAD PDF

Pipe Cutting Machine Exact Infinity Hydra Advantages

Exact Infinity Hydra

Pipe cutting up to 1.850 mm - and beyond

The included chain set covers pipe diameters from 360 mm to 1,850 mm (14”–73”). With optional chain extensions, the system enables cutting of infinitely larger pipe diameters, offering unmatched flexibility for large-scale pipework.

Cutting and Beveling

Infinity is also available with an optional Cut+Bevel set for cutting and beveling cast iron and plastic pipes in a single process.

Cutting and Beveling

Matching it
Exact Saw Blade TCT 165
Exact Saw Blade TCT
165
Blade with tungsten carbide tips for general use. Suitable for cutting steel, copper, aluminum and plastics.

to TCT 165

Exact Cutting Disc Diamond X165

Exact Cutting Disc Diamond X165

Heavy duty special diamond blade only to be used for cutting cast iron and ductile pipes.

to Diamond X165

Cut+Bevel

Cut+Bevel Set

Easily install an Upgrade on your Pro Machine.




to Cut+Bevel Set

Powerdrill Gearbox

Powerdrill Gearbox

Gearbox with drill connection for PipeCut Infinity & Infinity Hydra.




to Powerdrill Gearbox

Users also searched

Pipe Cutting Machine
Exact Infinity

Range: 360 - 1.850 mm
Max. wall thickness: 20 mm



to Infinity

Pipe Jack Stand foldable
Pipe Jack Stand foldable
The classic Pipe Jack Stand for professional pipe handling.
Max. Capacity: 1.500 kg
Max. Diameter OD: 600 mm


to Pipe Jack Stand
Steel Pipe Welding Clamps
Steel Pipe Welding Clamps
Pipe Welding Clamps for external clamping.
5 types available
Clamping Range:
1 - 14 inch (25 - 355 mm)


To Pipe Welding Clamps
Wrap around Pipe Wrap
Wrap around Pipe Wrap
Ideal tool for marking out the outer surface of pipes.
Available for following ranges:
3-6" | 3-10" | 4-12"


to Pipe Wrap
