Pipe Beveler MF3-25 XL
Pipe Beveler MF3-25 XL
Pipe Beveler MF3-25 XL
Pipe Beveler MF3-25 XL
Pipe Beveler MF3-25 XL
Pipe Beveler MF3-25 XL

Pipe Beveler MF3-25 XL

Clamping range OD-OD:
0,787 - 2,996"

  • Working Range ID-OD: 0,492 - 2,996" (12,5 - 76,1 mm)
  • Pipe wall thickness: max. 15 mm
  • Perfect pipe beveling and pipe edge preparation
  • Spark-free and low noise
  • High repeatability



 DWT PipeTools Made in Germany  DWT PipeTools Made in Germany  DWT PipeTools Made in Germany

Review Pipe Beveler MF3-25


Request Online Live Demo

The pipe beveler MF3-25 XL has a working range from ID 12,5 mm to OD 76,1 mm and can be equipped with an angled drive on request. When using the optional angle motor, the machine can be used in confined spaces.

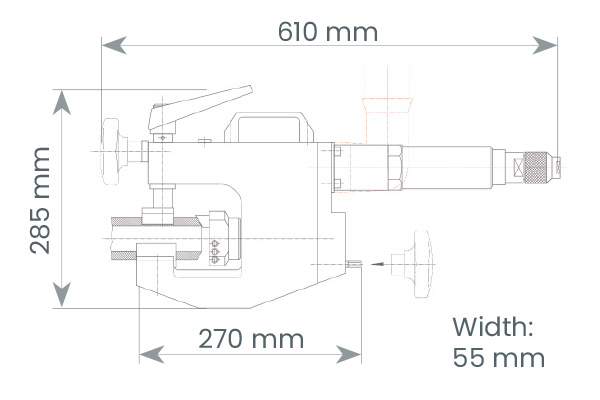

Pipe Beveler MF3-25 XL

Working range ID-OD
0,492" - 2,996" (12,5 - 76,1 mm)
Clamping range OD-OD
0,787" - 2,996" (20 - 76,1 mm)
Max. wall-thickness
0,59" (15 mm)
Feed
0,98" (25 mm)
Weight with pneumatic motor
8,8 kg
Weight with electric motor
10 kg
Weld prep
facing, V & J-prep, counter boring
Materials
steel, stainless steel, duplex, high-alloyed
Tooling
tool bits, TiN inserts, custom bits
Body
lightweight housing

MF3-25 XL with pneumatic motor

Power
850 W (1,2 HP)
Air pressure
6 bar (87psi)
Air consumption
0,96 m³/min (33,9 cfm)
Air hose connection
1/4"
Features
speed control

MF3-25 XL with electric motor

Power consumption
1.500W (110V/230V)
Features
restart and overlaod protection, speed adjustment, torque control


Flyer Pipe Beveler MF3-25 XL

DOWNLOAD PDF

Product overview

Item No.
Description
091505667
Pipe Beveler MF3-25 XL with pneumatic motor
091505101
Pipe Beveler MF3-25 XL with electric motor 230V


YouTube

Your privacy settings on this website prevent the playing of YouTube videos!
Please allow viewing of YouTube in the FUNCTIONAL group.

ALLOW YOUTUBE
Further information on data protection can be found in our Privacy Policy.
Pipe Beveler MF3-25 XL Advantages
Beveling of membrane walls

Beveling of membrane walls

The big advantage of the MF3-25 XL is that membrane walls down to a size of Ø 20mm can be bevelled with tool tip crown milling heads. The minimum membrane wall width is only 37,0 mm.

Ergonomic

Due the use of aluminium alloys the machine
has a low weight and can be easily operated by one person.
Ergonomic Pipe Beveler
Tooling

Various Tools

Tool bits, insert holders and tools holders  with special tools can be used for perfect weld edge preparation.
Matching it
Inserts Pipe Beveler
Inserts
Double-sided TiN inserts provide low costs due to longevity and less heat development

to Inserts
Inserts Holders Pipe Beveler
Inserts Holders
All holders are made in Germany and produced of high-quality tools steel.


to Insert Holders
Boiler Tube Fin Removal Tool
Boiler Tube Fin Removal Tool
The fin removal tools are used for weld prep of boiler tube panels

to Removal Tool
Easy to fit tool
Easy to fit tool
Easy to fit is the new welding solution for pipes and fittings - the future of pipe welding


to Easy to fit
