DWT Flange Leveler

Bolt spacing from 60 to 260 mm

  • Stepless bolt distance: 60 - 260 mm
  • Length: 400 mm
  • Bolt length: 75 mm
  • Depth: 23 mm


 DWT PipeTools

Item no. RG350030

Request Online Live Demo

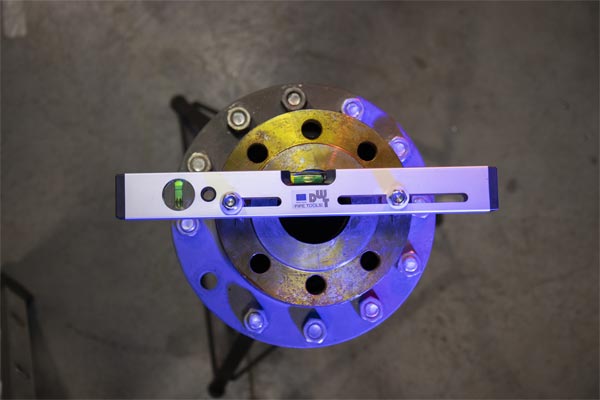

The flange leveler is suitable for flanges with bolt diameters from 16 mm to 32 mm. With this tool, incorrect positions of parts are prevented and no further adjustment tools are required.
The bolt spacing can be varied continuously from 60 mm to 260 mm so that the bolt holes are kept in balance.
DWT Flange Leveler

Dimensions
400 x 50 x 23 mm
Bolt length
75 mm
Bolt distance
60 - 260 mm

  • Pipeline construction
  • Boiler & tank construction
  • Flange repair
  • Flange welding
Flyer Flange Leveler

DOWNLOAD PDF
DWT Flange Leveler Advantages
Stepless bolt distance

Stepless Bolt distance

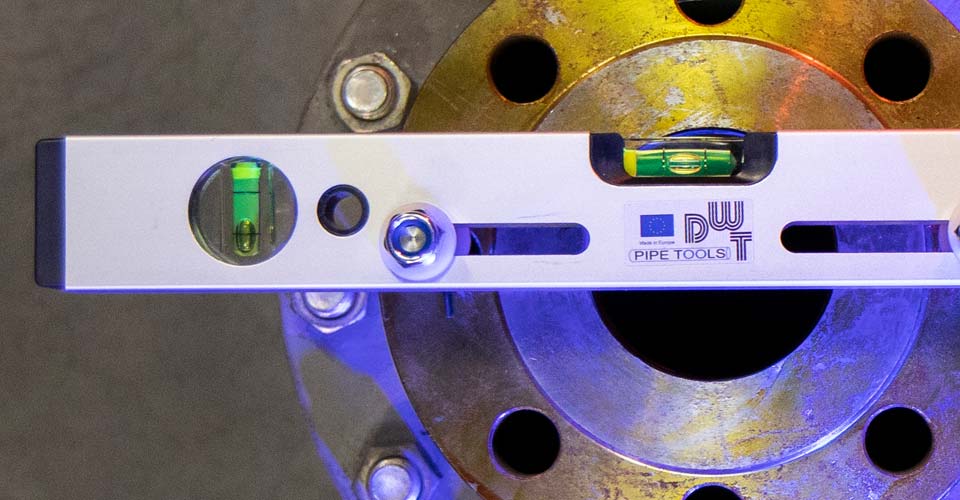

Fast and secure flange leveling



flange leveling
Self Tensioning Springs

Self tensioning springs
